If you have ever machined a cylindrical part, taken it out for a secondary operation, then put it back only to lose your reference, you already know the problem. Knowing how to index round parts is less about theory and more about keeping a usable, repeatable orientation when the part is rotated, slid, flipped or removed between operations.
Flat stock gives you a natural reference. Round stock does not. Once the surface is continuous, any small shift in position can become a feature mismatch, a clocking error or wasted time spent indicating and rechecking. That is why indexing matters so much whenever you are drilling, milling, slotting or inspecting features on a cylindrical component.
Why indexing round parts is difficult
The difficulty comes from geometry. A round part has no obvious starting face, no corner and no fixed visual cue unless you create one. In a chuck, collet, vice or fixture, the part can be rotated freely. Even if you think you have put it back in the same position, a small angular error can move a feature well outside tolerance by the time you reach the next operation.
This gets worse when the work involves several handling stages. You may rough turn a shaft, remove it, cross-drill it, deburr it, inspect it and then return it for another cut. Every time the part leaves the set-up, the risk of losing orientation increases. On one-offs it costs time. In production it costs repeatability.
The issue is not only angular position. Sliding the part axially can also affect where your indexed feature lands relative to a shoulder, groove or datum. Good indexing therefore has two jobs: preserve clocking and preserve a consistent reference during handling.
How to index round parts in real shop conditions
The practical answer is simple. You need a physical reference that remains consistent as the part is moved. Scribed lines and marker pens can help for rough work, but they are not a dependable method when tolerance and repeatability matter. A dedicated indexing tool gives you a repeatable point of contact on the cylinder so orientation is maintained without relying on guesswork.
That matters because most lost time does not come from making the first feature. It comes from re-establishing where zero was after the part has already been handled. If the indexing method is built into the workflow from the start, the second and third operations become much more predictable.
A proper approach usually starts before the first cut. Decide which feature will serve as the master orientation, where the part needs to be referenced during transfer, and whether the job requires the part to be removed and reinstalled more than once. If the answer is yes, build indexing into the set-up rather than treating it as an afterthought.
Choosing the reference point
The best reference point is the one that stays useful through the whole job. On some components that may be a turned diameter. On others it may be a finished outside diameter that must align with a milled flat, a keyway or a radial hole pattern.
What matters is consistency. If you index from a temporary surface that changes during machining, you may preserve orientation early on and lose it later. If the part includes several diameters, choose the section that gives the most stable and repeatable contact without interfering with tool access.
This is also where size-specific tooling earns its place. An indexing tool matched to the diameter range of the workpiece gives a more dependable reference than trying to improvise across sizes. The closer the tool fits the real job, the less room there is for handling variation.
When simple marking is enough
There are jobs where a witness mark is acceptable. Large tolerance work, fabrication tasks or one-off repair parts may not justify a dedicated indexing set-up. In those cases, a line, punch mark or quick fixture note can be enough to keep orientation broadly correct.
The trade-off is obvious. Manual marks depend on visibility, operator care and consistent repositioning. They are fine until they are not. If the feature relationship actually matters, they become a weak link.
When a dedicated indexing tool is the better option
If you are producing repeat parts, holding close angular relationships or moving the part between machines, a dedicated indexing tool is usually the safer choice. It reduces operator judgement, cuts set-up time and gives the same reference every time the part is handled.
That is especially useful in toolrooms and small-batch production, where jobs vary but the need for accuracy does not. A simple, repeatable method is often better than a clever fixture that takes too long to justify.
A practical workflow for repeatable indexing
Start by identifying the critical relationship on the part. That could be a flat relative to a cross-hole, a slot relative to a turned shoulder or a series of holes relative to an existing feature. Once that relationship is clear, establish the indexing point on the cylindrical surface before moving into secondary operations.
With the reference established, carry out the first operation and keep the indexing condition intact whenever the part is rotated or removed. If the component needs to be flipped, make sure the same reference can be picked up again from the opposite handling position. If it needs to be slid along its axis, verify that the angular reference stays unchanged while axial location is reset from a separate datum.
This distinction matters. Indexing controls orientation, but it does not replace proper length location. Good workholding still needs a stop, shoulder or measured datum to control axial position.
For repeat jobs, document the method. A note on the route card or set-up sheet about where the part is indexed from can save time for the next operator and reduce variation between shifts.
Common mistakes when indexing round parts
One common mistake is assuming the chuck position is enough. It rarely is, especially after the part has been removed. Jaw marks and visual alignment may look close, but close is not the same as repeatable.
Another is indexing from a surface that will later be machined away or altered. Once that happens, the original reference is gone and any downstream operation has to be re-established from scratch.
There is also the problem of overcomplicating the job. Not every part needs a custom fixture or a fourth axis. If the requirement is simply to preserve orientation on a cylindrical part through handling, a straightforward indexing tool can do the job with less set-up time and more flexibility.
Finally, do not confuse clamping force with indexing accuracy. A part can be held very tightly and still be clocked incorrectly. Secure holding and repeatable orientation are related, but they are not the same thing.
How to index round parts without slowing production
The best indexing method is the one operators will actually use. If it takes too long to set, blocks access to the cut or makes loading awkward, it will get bypassed sooner or later. In production, speed matters, but speed without repeatability creates scrap and rework.
A good solution should let the machinist keep a consistent reference while still allowing the part to be rotated, removed and reinstalled as needed. That is why simple mechanical indexing methods tend to work well on the shop floor. They do not ask the operator to interpret a mark or indicate from scratch every time.
For many cylindrical jobs, the gain is not only accuracy. It is rhythm. Once the reference is controlled, set-ups become more predictable and inspection becomes quicker because the part presents the same way each time.
Where dedicated tooling fits
Purpose-built tools for indexing round parts sit in a useful middle ground. They are more dependable than improvised marking methods and far quicker to adopt than a fully custom fixture. For shops that routinely machine shafts, pins, rollers, bushings or other cylindrical components, that makes them a practical choice.

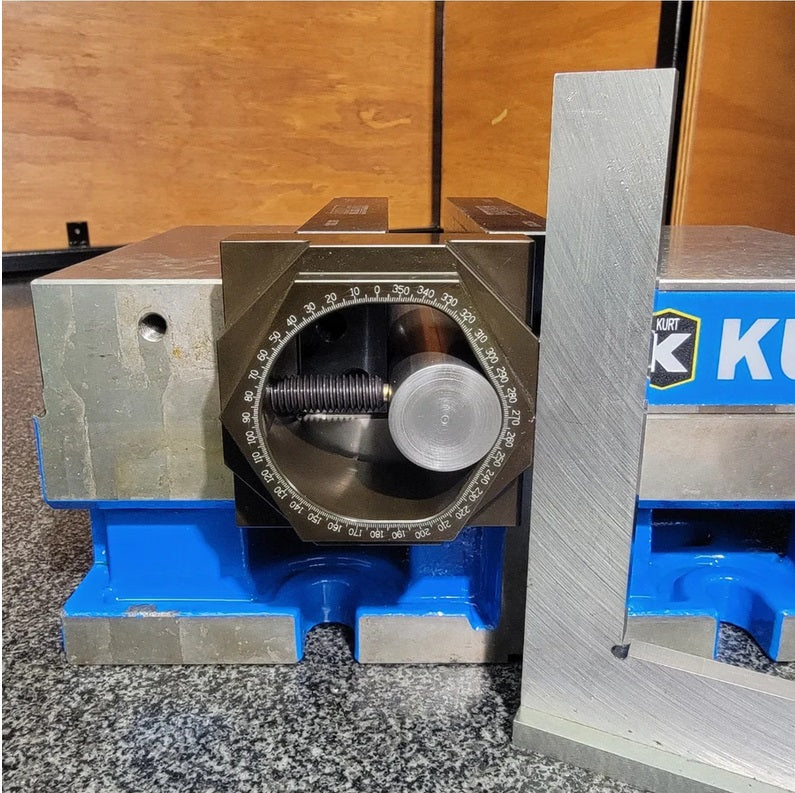

Rosenthal Products EU focuses on that exact problem with the Rose-Index Steel range - tools designed to maintain a reference point on round material while the part is rotated, slid, flipped, removed and reinstalled. That is the sort of tool that solves a real workflow issue rather than adding another layer of set-up complexity.
The main point is straightforward. If a round part has features that must relate to each other after handling, indexing should be treated as part of the machining process, not as an operator memory exercise.
A reliable reference on a cylindrical part pays for itself quickly. It saves time, avoids avoidable checking, and makes the next operation start where the last one left off.
