Degree Wheel Rose-Index Steel 1 Inch to 2 Inches.Now 30% discounted FROM THIS PRICE.

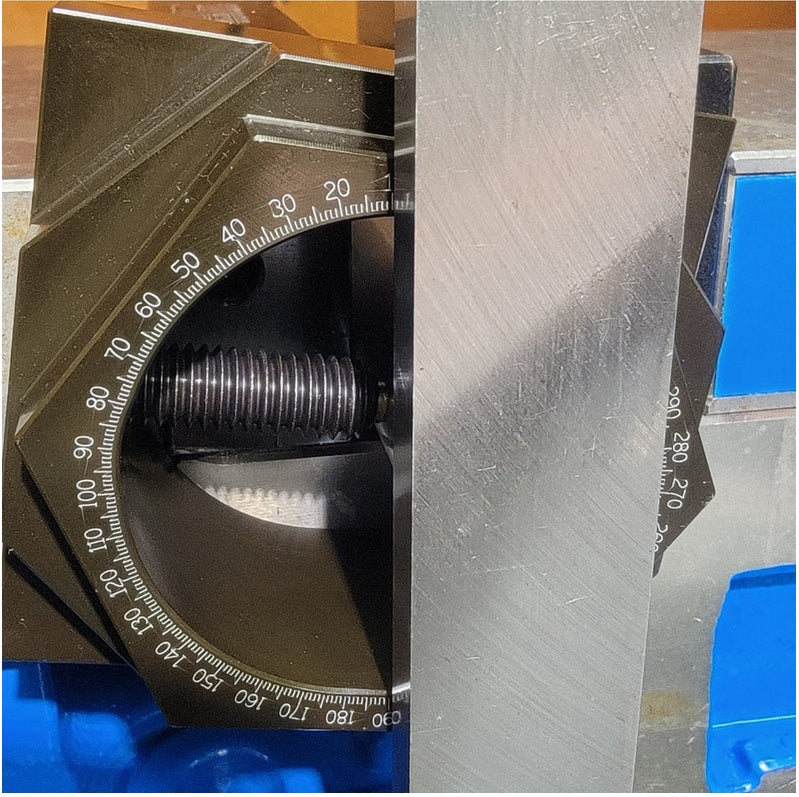

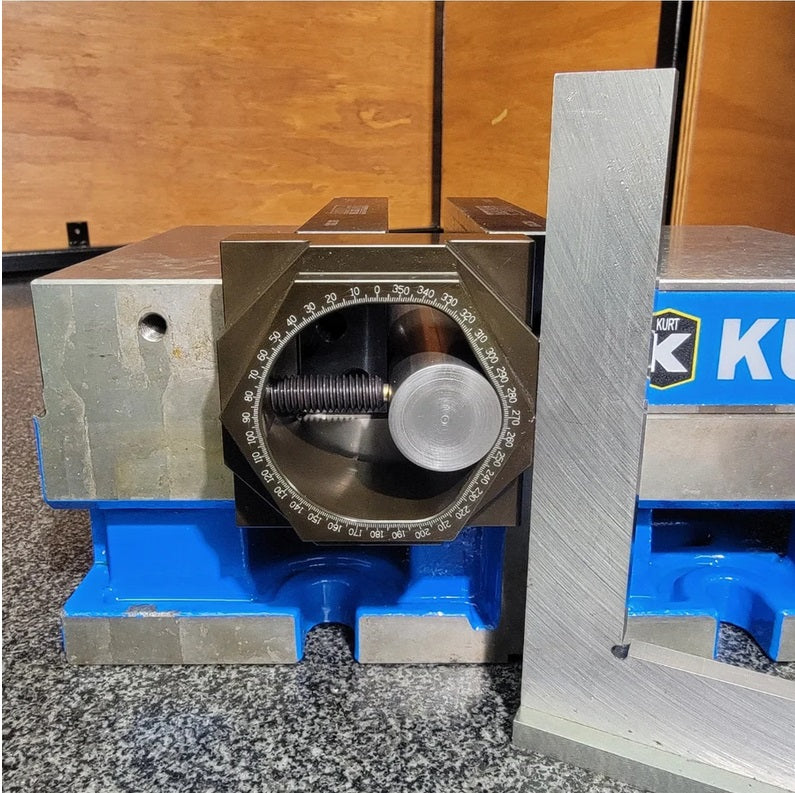

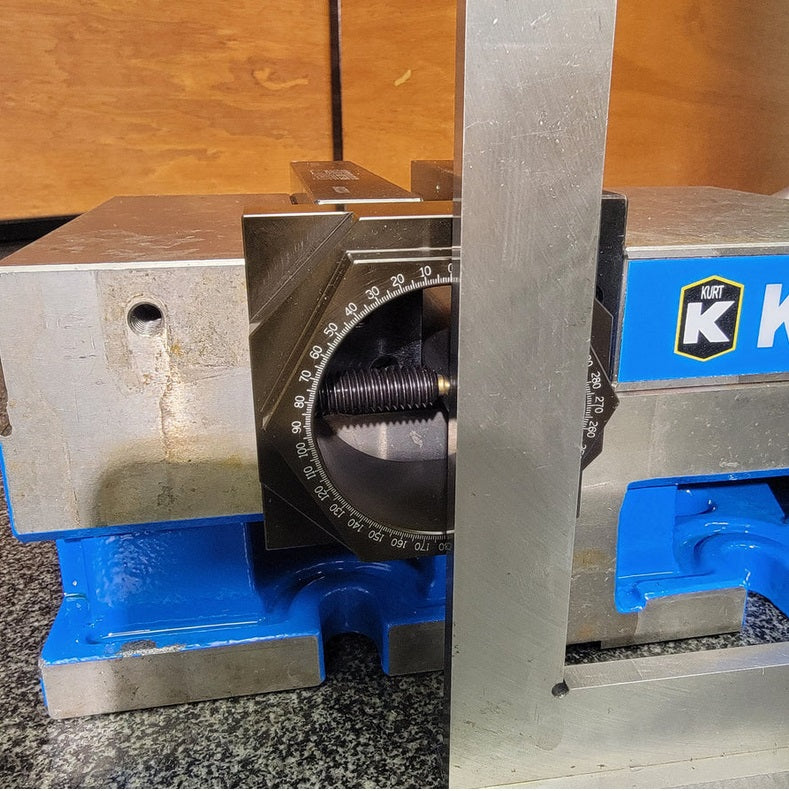

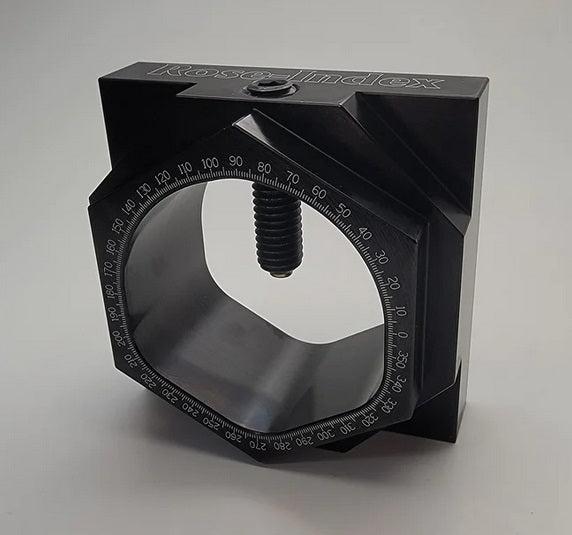

This is the same Rose-Index everyone knows and loves, but with an add-on called the Degree Wheel. The degree wheel is an add on of laser markings showing 360 degrees. Lining up is as simple as pushing a machinist square into the vee grooved side of the Rose-Index. As you push the Rose-Index into the part it will become aligned with the 0 degrees up and 180 down. We recommend that you only leave a few thou of stock protruding from the Rose-Index. This will protect you from scratching the face of the Degree Wheel because the machinist square will be in contact with the stock. Choose the degree of rotation you want. If you want a 10 degree rotation simply line up the 10 degree marks on the top and the 190 degree on the bottom. Simply add 180 degrees to your desired angle, and line up the desired marks on the square.This is the original Rose-Index with a range of 1”(2.54 cm) to 2”(5.08 cm) diameters. This robust tool does not require any collets and maintains a firm and stable grip on your work piece through the entire size range. It is 100% machined from solid steel. All three shapes are machined during the same fixturing to maintain accuracy. This unique version of an indexer is not intended to hold your workpiece, which allows you to turn your machine vise into an indexer in seconds.  It is also Removable which gives you almost obstruction free machining of your part.

Easily re-position your workpiece in various ways.

-Rotating 45, 60, or 90 degrees is very easy to do. 30 degrees can be achieved by alternating between a square and adjustable parallels on the Hex. Using angled parallels allows for 1 degree increments.

-Referencing. The Rose-Index is a quick easy way to maintain a reference on your round part so you can remove it for inspection, going from machine to machine, or even for deburring.

-Repositioning by shifting over if you need that couple inches of extra machine travel or even flip the part end for end for a drastic increase to your machine’s work envelope.

The Rose-Index is a must have for any machinists tool box and is growing in popularity quickly. The Rose-Index is a tool that you will wish you had years ago.
